EJA130E Differential Pressure Transmitter | Yokogawa
The EJA-E series of transmitters is Yokogawa’s most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.
Purchase details
- Free Online Product Selection Service
- Fast Quoting & Competitive pricing
- Min. order: 1 piece & 2-Year Warranty
The EJA-E series of transmitters is Yokogawa’s most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

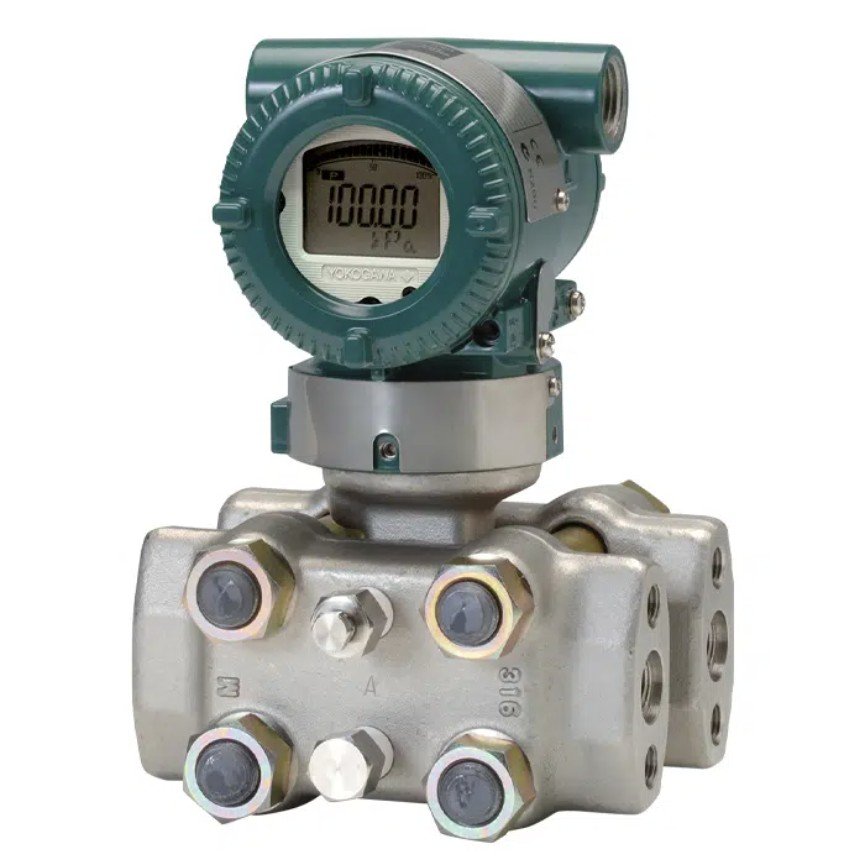

The EJA130E is a differential pressure transmitter designed to work in a high static pressure enviroment.
EJA130E features include:
- ± 0.055% Accuracy
- ± 0.1% Stability per 10 years
- 150 ms Response Time
- 4,500 psi MWP
- Exida and TUV SIL 2/3 Certified
- Local Parameter Setting (LPS)
Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION FieldBus, PROFIBUS PA, or BRAIN communication.
EJA130E Overview
Refer to the General Specification sheet located under the ‘Downloads’ tab for detailed specifications.
| Measurement Types | |
|---|---|
| Primary Variable | Differential Pressure (DP) |
| Secondary Variable | Static Pressure (SP) |
| Reference Accuracy | |
| Primary Variable | ±0.055% of DP Span |
| Secondary Variable | ±0.5% of SP Span |
| Long Term Stability (All Normal Operating Conditions) | |
| Primary Variable | ±0.1% of URL per 10 years |
| Maximum Pressure Limit (MWP) | |
| All Capsules | 4,500 psi |
| Over-pressure Effect | |
| Primary Variable | ±0.03% of URL |
| Rangeability | |
| Primary Variable | 100:1 |
| Burst Pressure | |
| All Capsules | 19,100 psi (132 MPa) |
| Specification Conformance | |
| EJX-A Series | ±3σ |
