Azbil/Yamatake Positioners

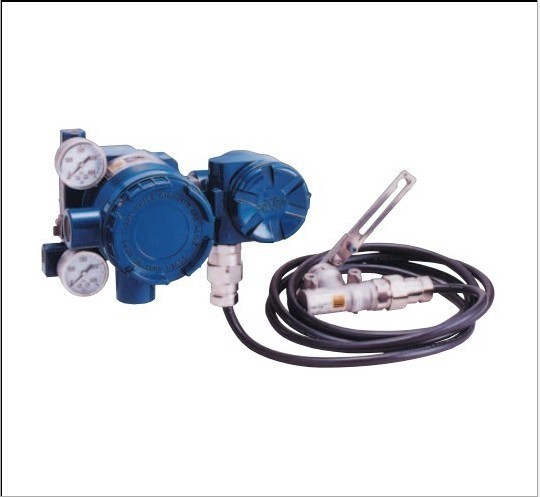

Azbil SVP3000 Alphaplus Smart valve positioner AVP200,AVP201

Quick Details

Place of Origin: Japan Brand Name: Azbil Model Number: AVP200/201
Packaging & Delivery

Packaging Details: Standard exported packing
Delivery Detail: 2-4 weeks

FEATURES
Easy to use
Auto setup:
The auto-setup function is a fully-automatic configuration program which specifies the actuator and adjusts the zero and span of the valve. The program can be turned on simply from an external switch so that adjustments to the valve can be performed quickly and safely in hazardous areas.
High reliability
Positive seating:
The positive seating function completely shuts off the valve if the input signal becomes lower than previously set. This in turn enhances the full shut-off capabilities of the valves.
Self-diagnostic:
The self-diagnostic function provides with the ability to check the status of the positioner at any time and to alert in case of failure.
Single model for multiple specifications
SVP Alphaplus · settings can be changed without replacing any parts. A single model can be modified to suit any application.
Input range: Configurable to any required range for split range
Flow characteristic: Linear, EQ%, Quick opening or custom user characteristics
Actuator type: Single or double acting actuator (optional reversing relay required)
Travel transmission
The model AVP301 transmits a 4-20 mA signal proportional to the valve travel. The valve travel can be monitored from the control room.

More Models and low price, please contact services@myjackwell.com
